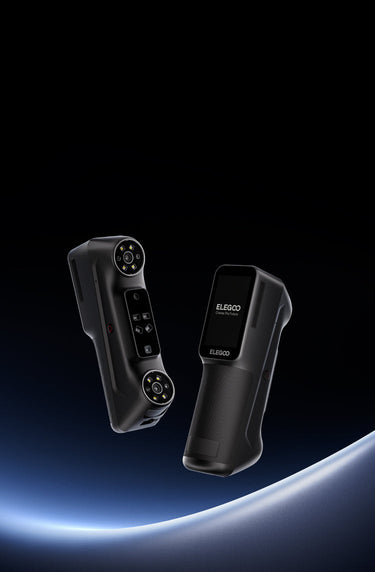

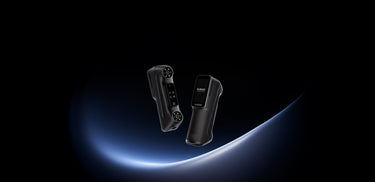

M1 Ultra

Scan Anywhere. Measure Precisely.

Buy Now

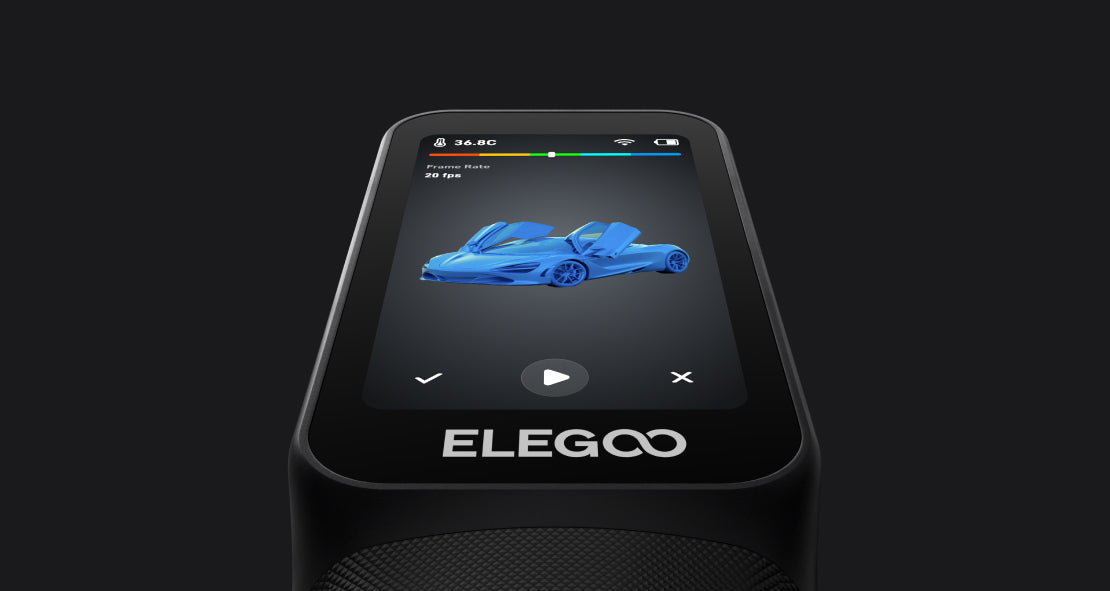

Smart & Compact, Touch to Scan

Versatile Scanning for Every Need

True-to-Life Precision

Efficient Scanning, Stable Results

Built for Diverse Applications

Powerful Software, Simplified Workflows

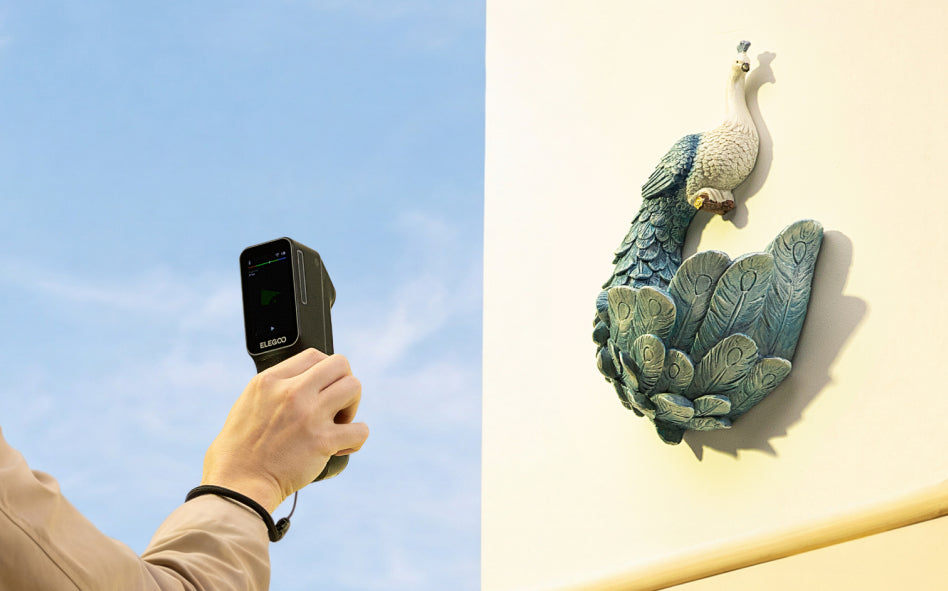

Wireless Freedom, Start Scanning Anywhere

Take your scanning anywhere with fast, stable data transfer over Wi-Fi. Move without limits around large parts, inspect equipment on site, or work across different areas with greater freedom.

Powerful
Processing, Real-Time Performance

Smoother scans, faster feedback. Built-in processing power handles data capture, compression, and image processing on the scanner, sharing the workload with your PC for a more responsive experience.

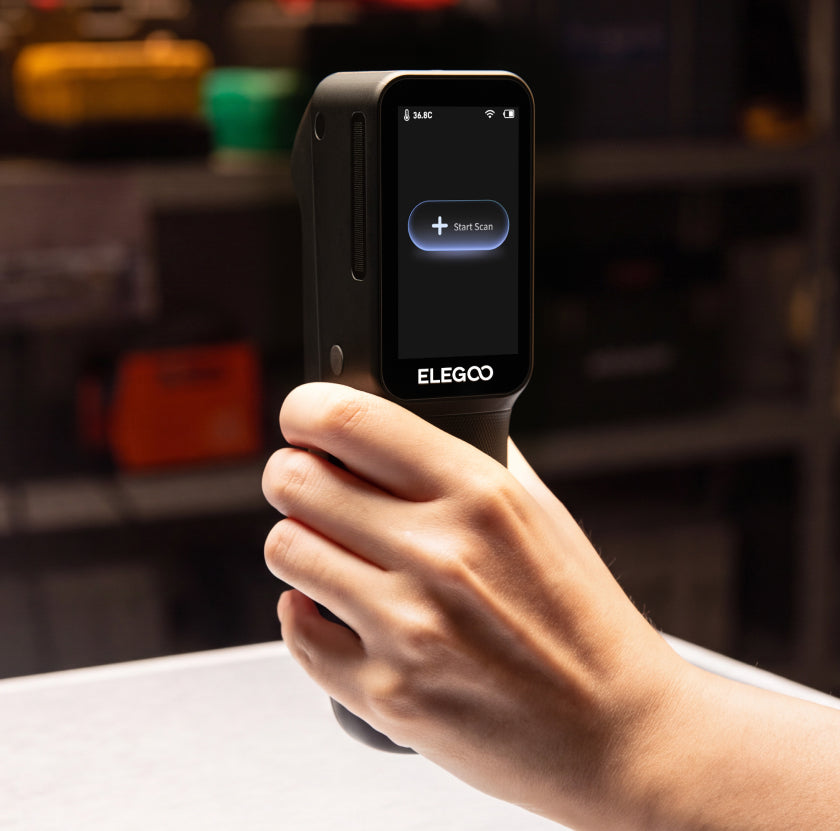

Lightweight Design, Comfortable Handling

Scan comfortably for longer with an ergonomic grip that feels light and balanced in your hand. The anti-slip grip and soft-touch rear cover provide a secure, comfortable hold, making M1 Ultra easy to handle as you move around the object.

Versatile Scanning for Every Need

34-Line Blue Laser Mode

Scan medium to large objects quickly and accurately with 34 crossed blue laser lines

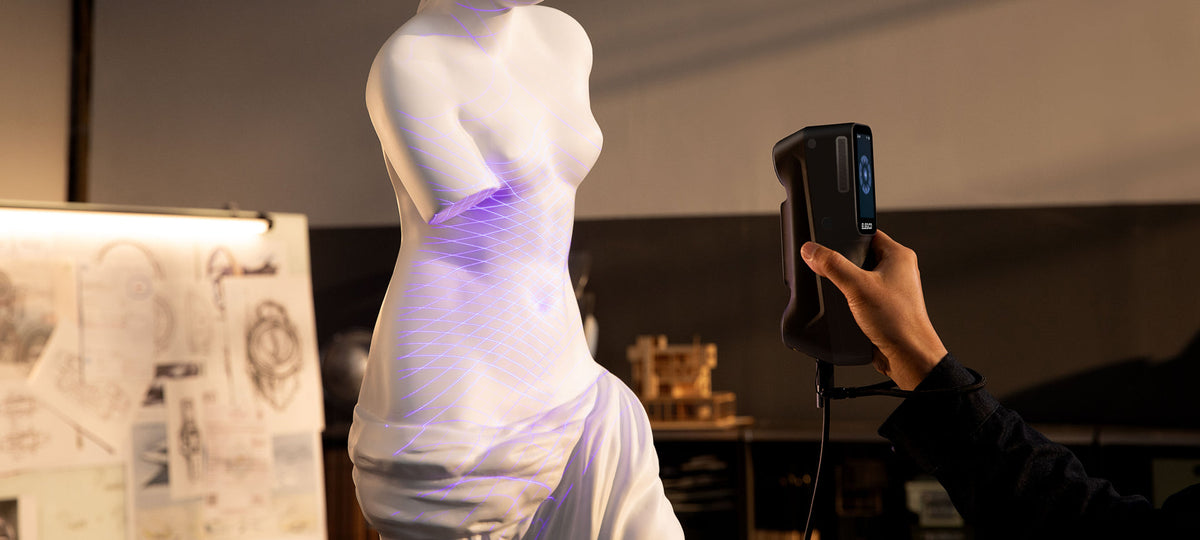

Marker-Free Blue Laser Mode

Enables scanning of surfaces where markers cannot be applied, including cultural artifacts.

True-to-Life Precision

Capture Every Detail with 0.02 mm Metrology-Grade Accuracy

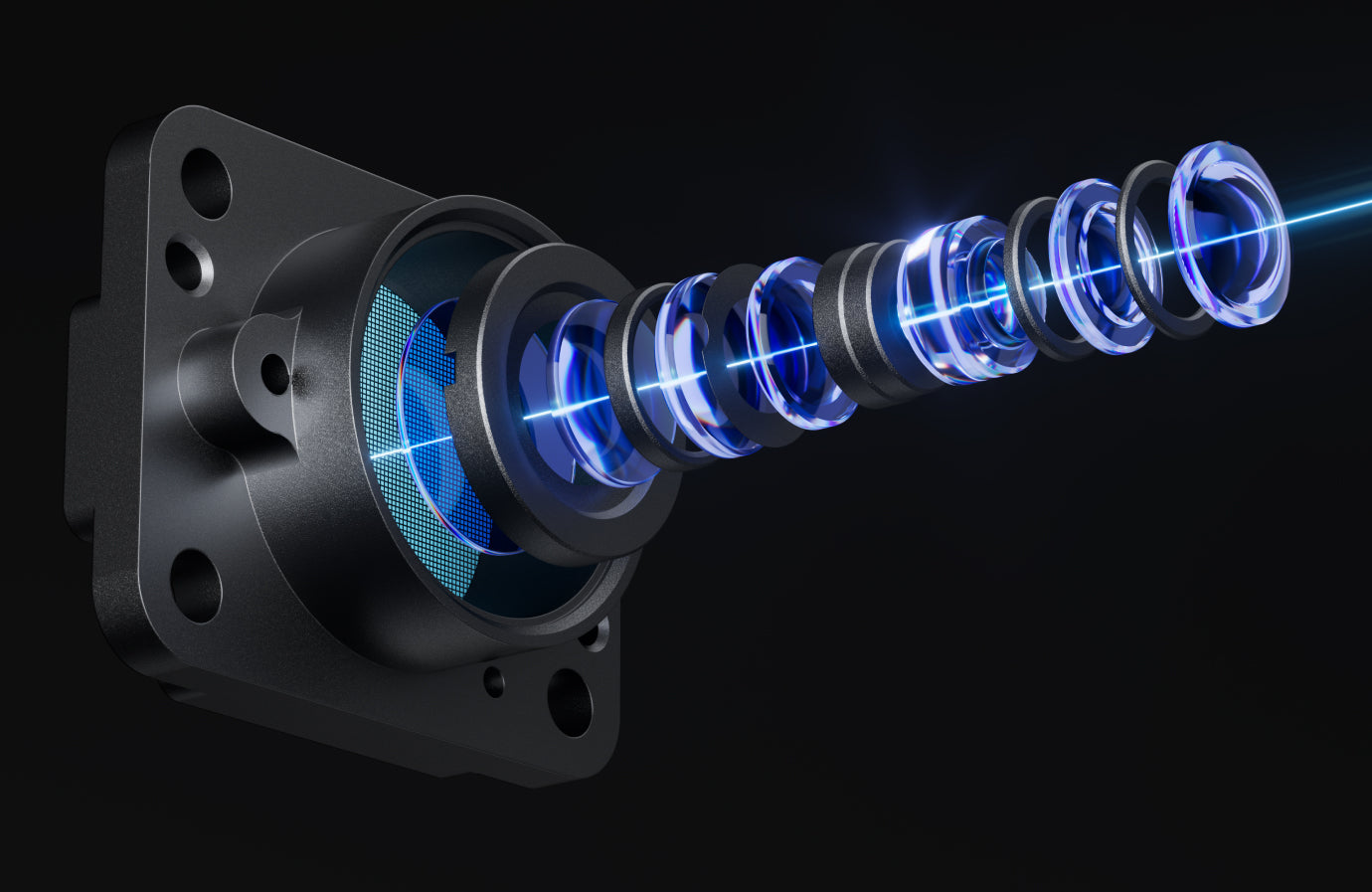

All-Glass Optics, Fine Detail

An industrial-grade lens with 7 all-glass elements delivers high-resolution, low-distortion imaging for fine detail. It supports both 450 nm blue laser and 850 nm NIR scanning for consistent accuracy.

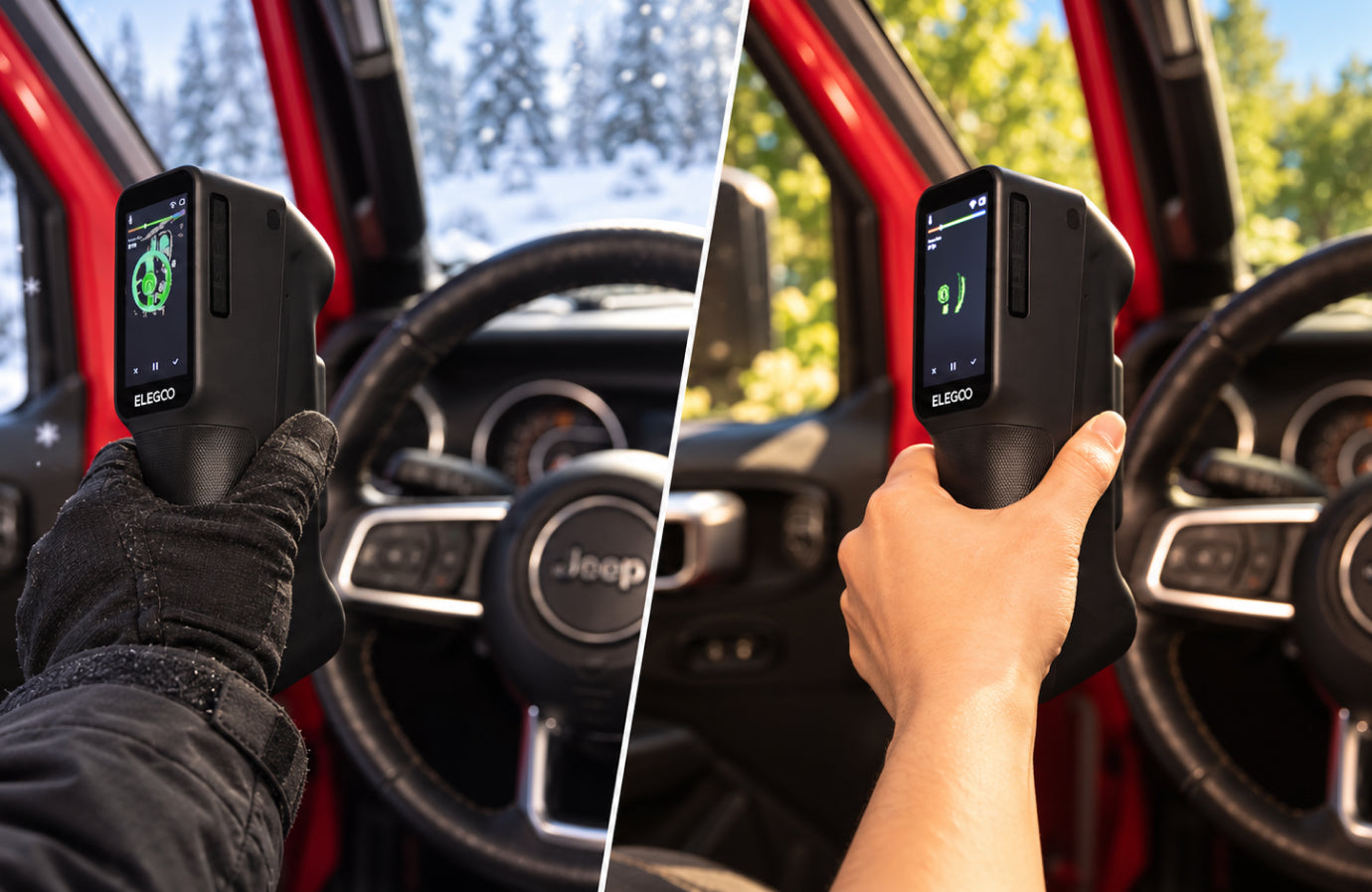

Intelligent Algorithms for Stable Accuracy

Stay accurate as conditions change, from -10°C to 40°C. Two intelligent algorithms—temperature compensation and high-precision camera calibration—work together to correct thermal and optical shifts in real time.

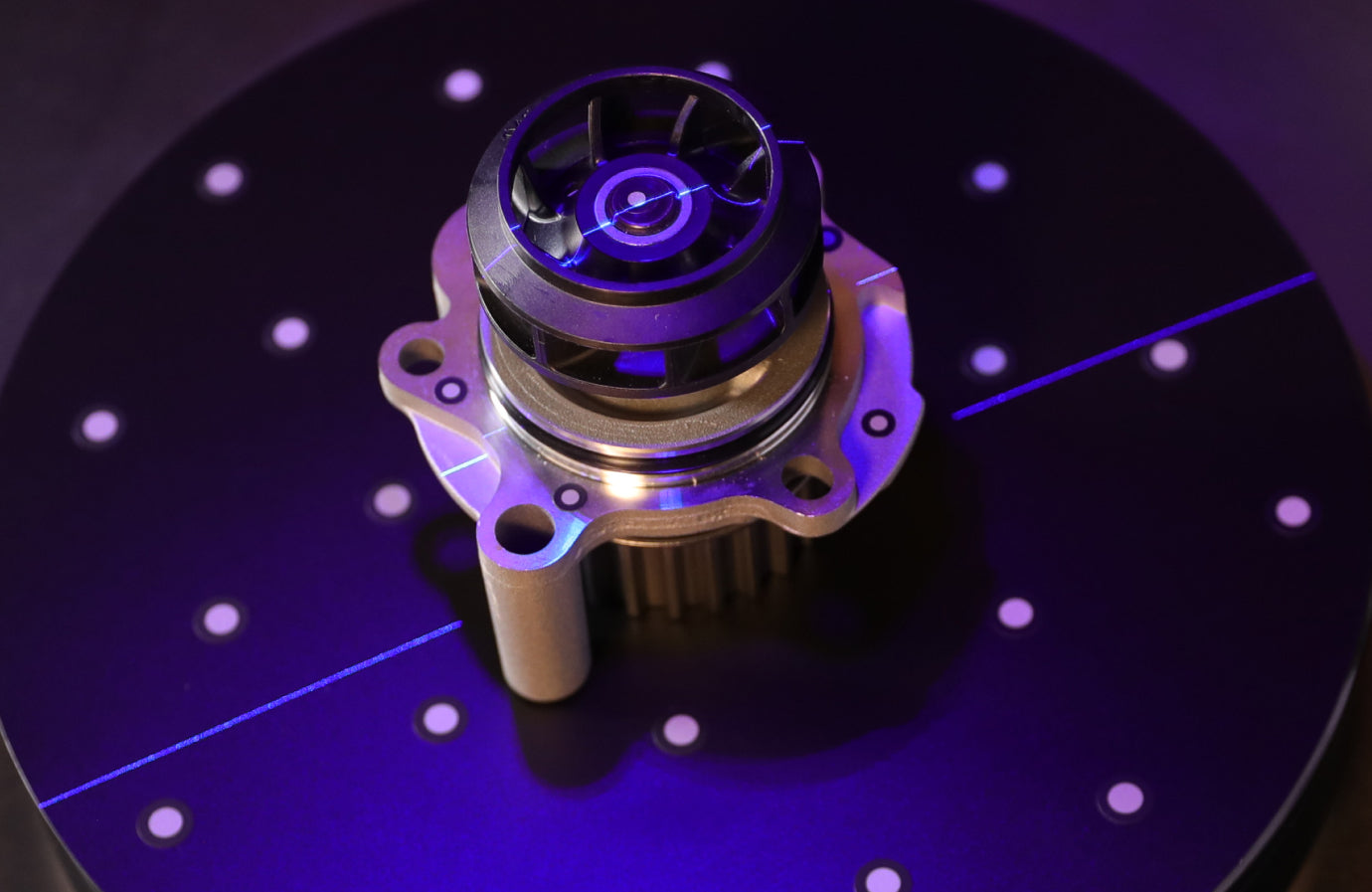

Ultra-Fine Blue Laser Lines

Bring out crisp edges and subtle geometry with 450 nm blue laser lines as fine as 0.1 mm—ideal for detailed parts, intricate surfaces, and complex shapes.

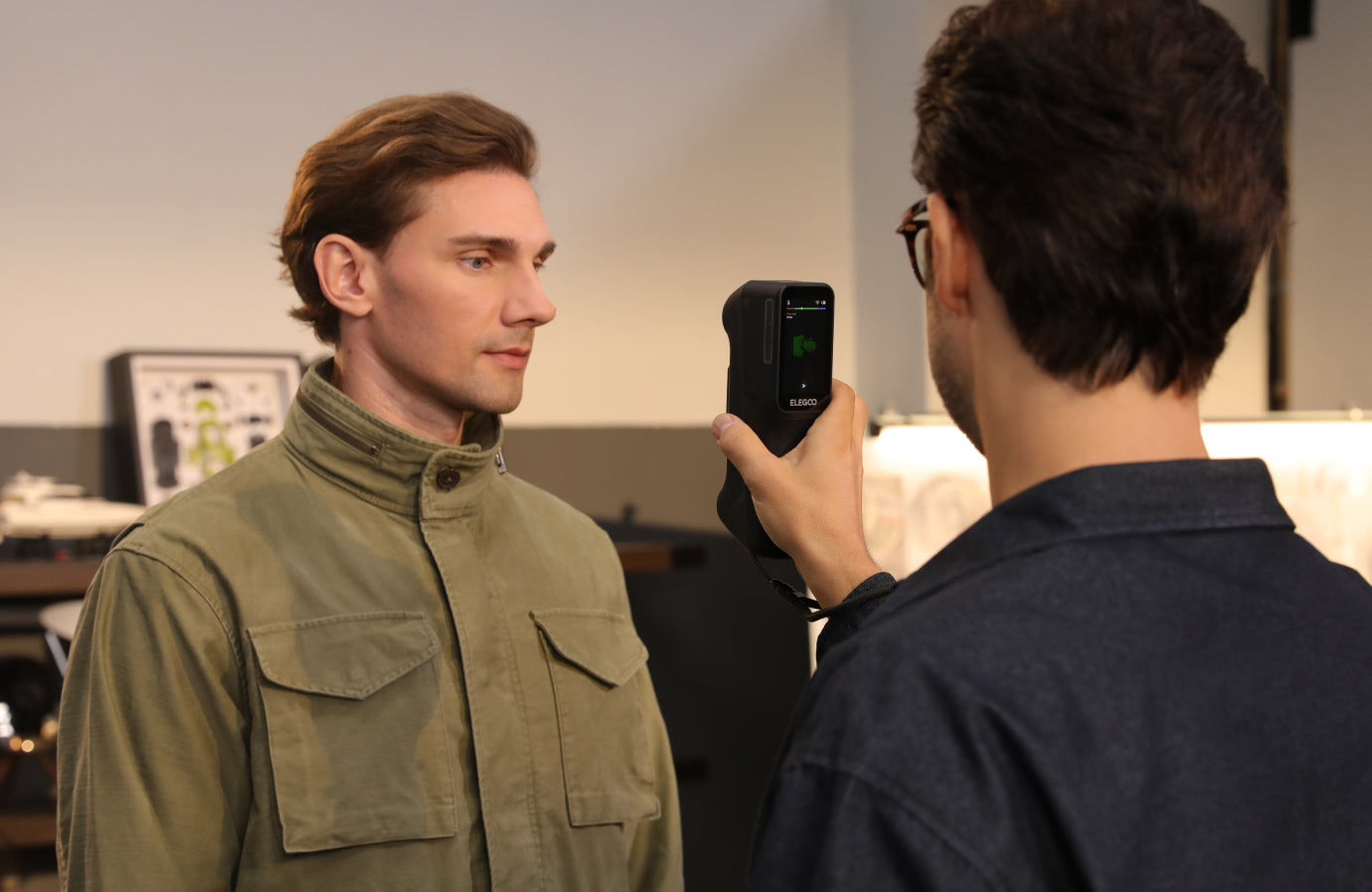

High-Density Infrared Speckle

Keep tracking steady on smooth, low-texture surfaces. High-density 850 nm infrared speckle creates more visual features for accurate scanning across metal, plastic, ceramic, and more.

See Your Scan in Full Color

See your finished model with the color and texture of the original. 24-bit full-color texture mapping and ISP image optimization align colors, textures, and surface finishes with the 3D geometry.

Efficient Scanning,
Stable Results

High-Speed Capture for Smooth Scanning

Move through scanning tasks faster with measurement rates up to 6,451,200 points/s in NIR mode. High-speed data acquisition across laser and infrared modes helps you collect more details in less time and keep scanning smoothly, even on complex projects.

2,040,000 points/s

Up to

Crossed Laser Measurement Rate
840,000 points/s

Up to

Parallel Laser Measurement Rate
120,000 points/s

Up to

Single-Line Laser Measurement Rate
6,451,200 points/s

Up to

NIR Measurement Rate

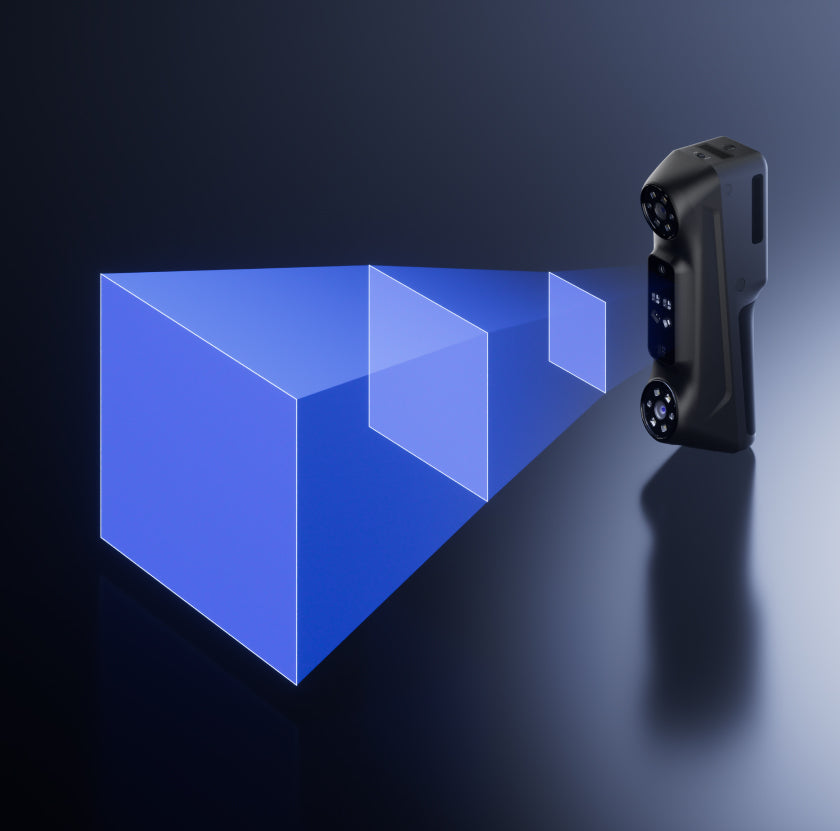

Wide Operating Range, Greater Flexibility

Scan from 160 mm to 1200 mm away, giving you freedom to adjust your working distance to the object. Move closer for detail or step back for larger structures without being locked to one scanning distance.

Capture More with Every Scan

Scan more of the object in each frame, with areas up to 621 × 480 mm in laser mode and 1121 × 960 mm in NIR mode. Fewer frames mean less repetition, easier tracking, and faster large-object digitization.

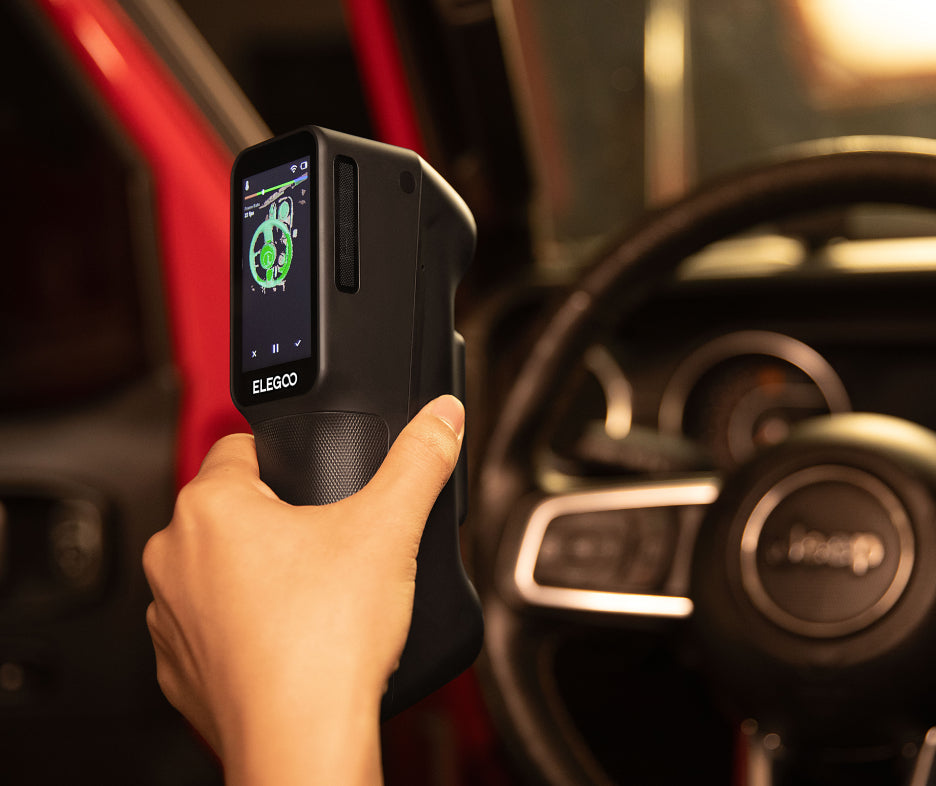

Consistent Imaging, Every Frame

Even when your hand moves quickly, M1 Ultra keeps each frame clear. Global shutter cameras reduce motion blur and image distortion, helping you build cleaner point clouds and more reliable 3D models.

Smarter Illumination, More Stable Tracking

Keep tracking steady across different surfaces and conditions. 8 blue-white LEDs and 4 infrared lights improve feature and marker recognition, helping reduce tracking loss for smoother scanning.

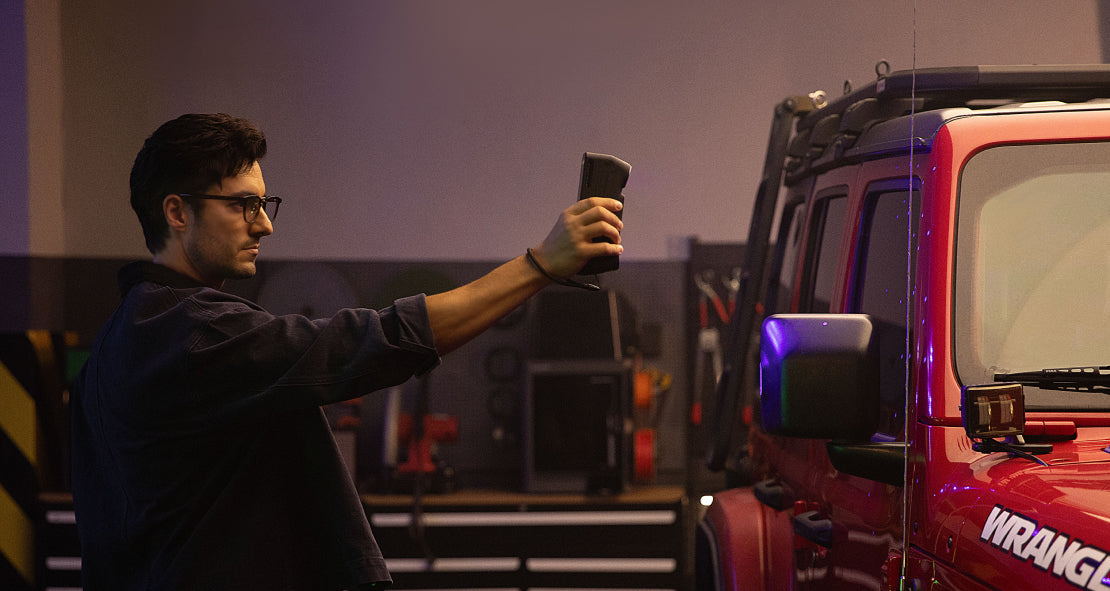

Built for Diverse Applications

Scan Small to Large, Cover Every Size

Scan objects from 5×5×5 mm³ to 4000×4000×4000 mm³ with one device, covering everything from tiny components to large-scale machinery.

Reliable Performance, Indoors or Outdoors

Take your scanning outdoors with professional optical filtering that reduces strong sunlight interference in NIR mode. From indoor workspaces to bright outdoor sites, M1U keeps scanning reliably in changing light.

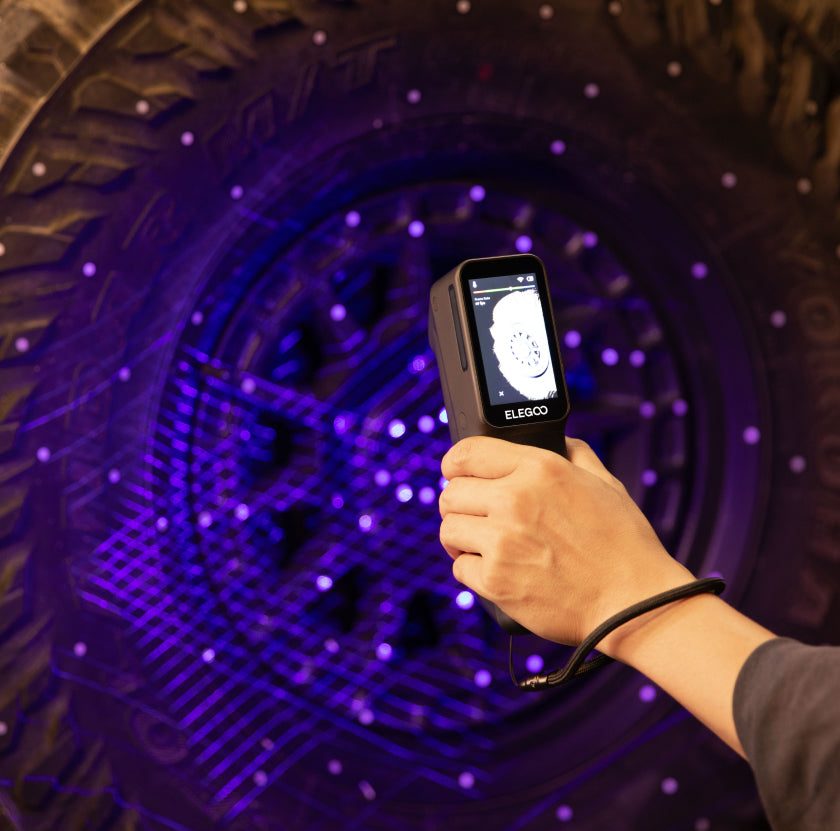

Direct Scanning for Black & Metal Surfaces

Scan black and metal surfaces without coating powder. Blue laser technology and advanced algorithms enable reliable capture while eliminating spraying, drying, and cleanup, preserving the original surface.

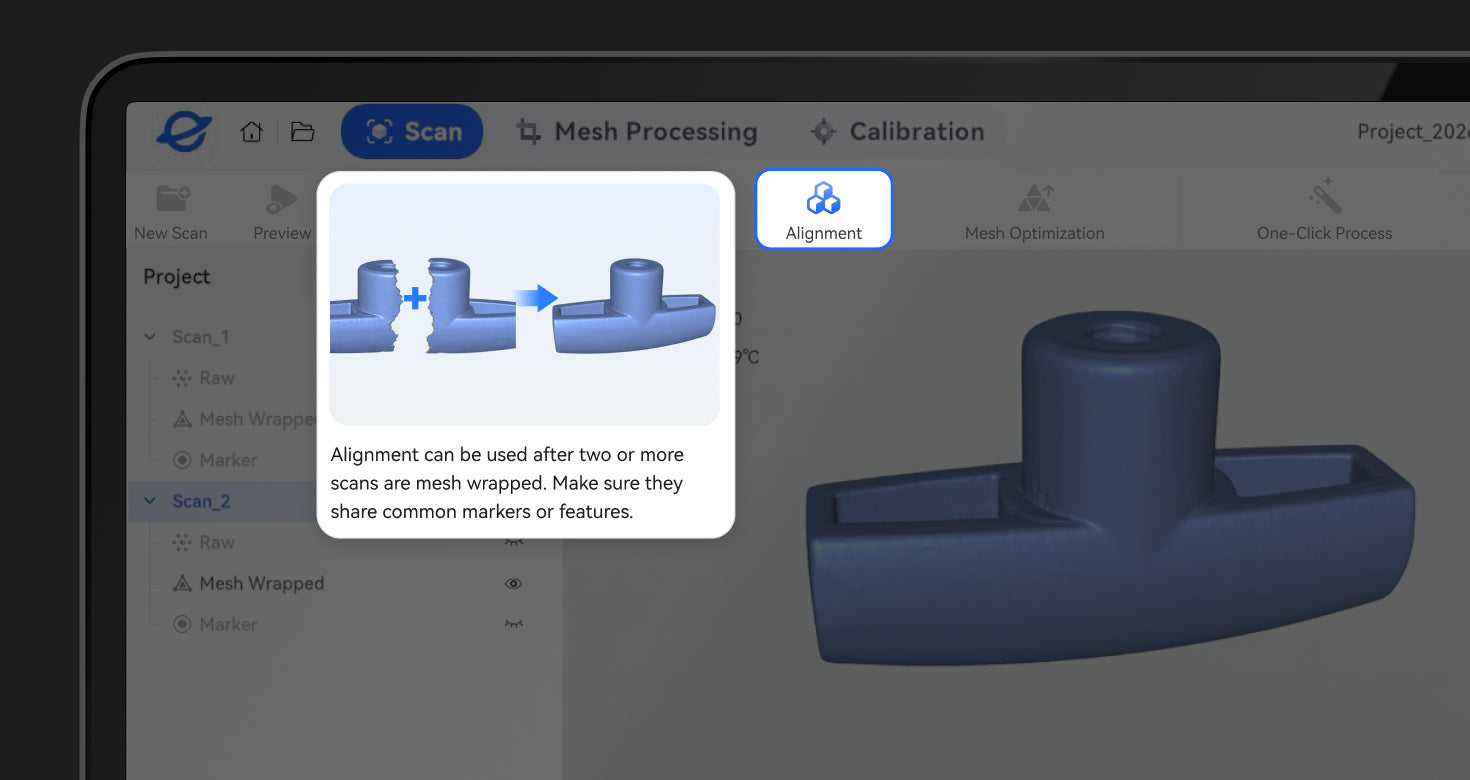

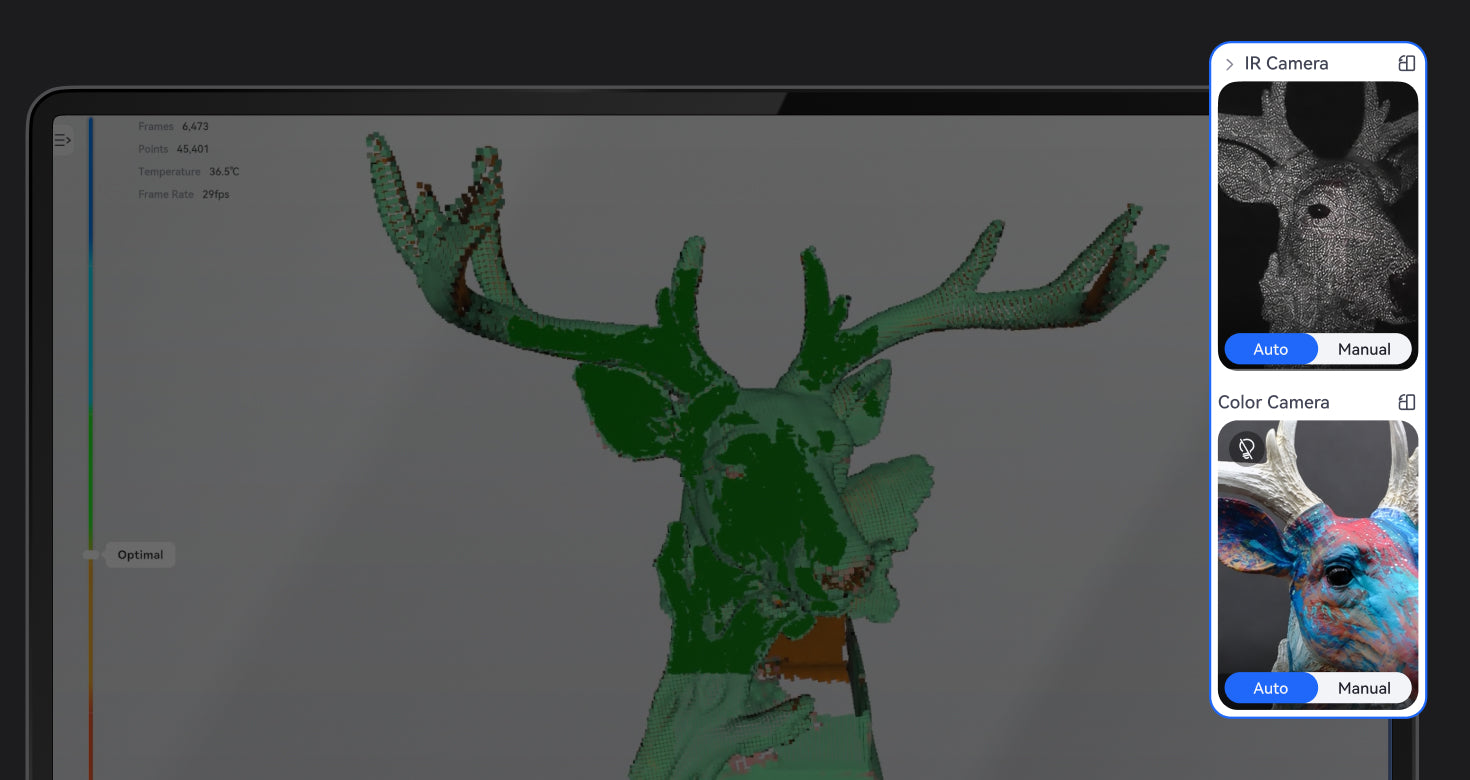

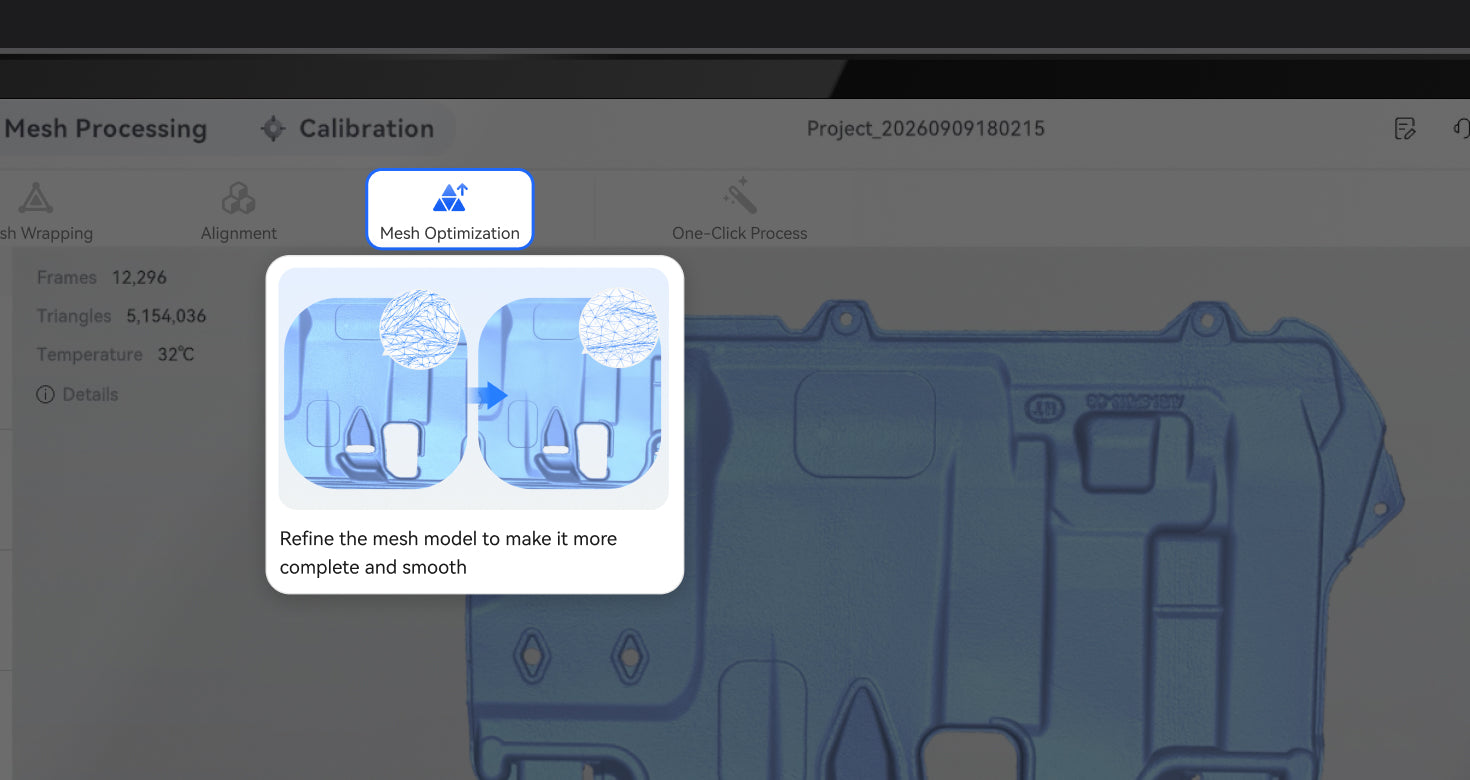

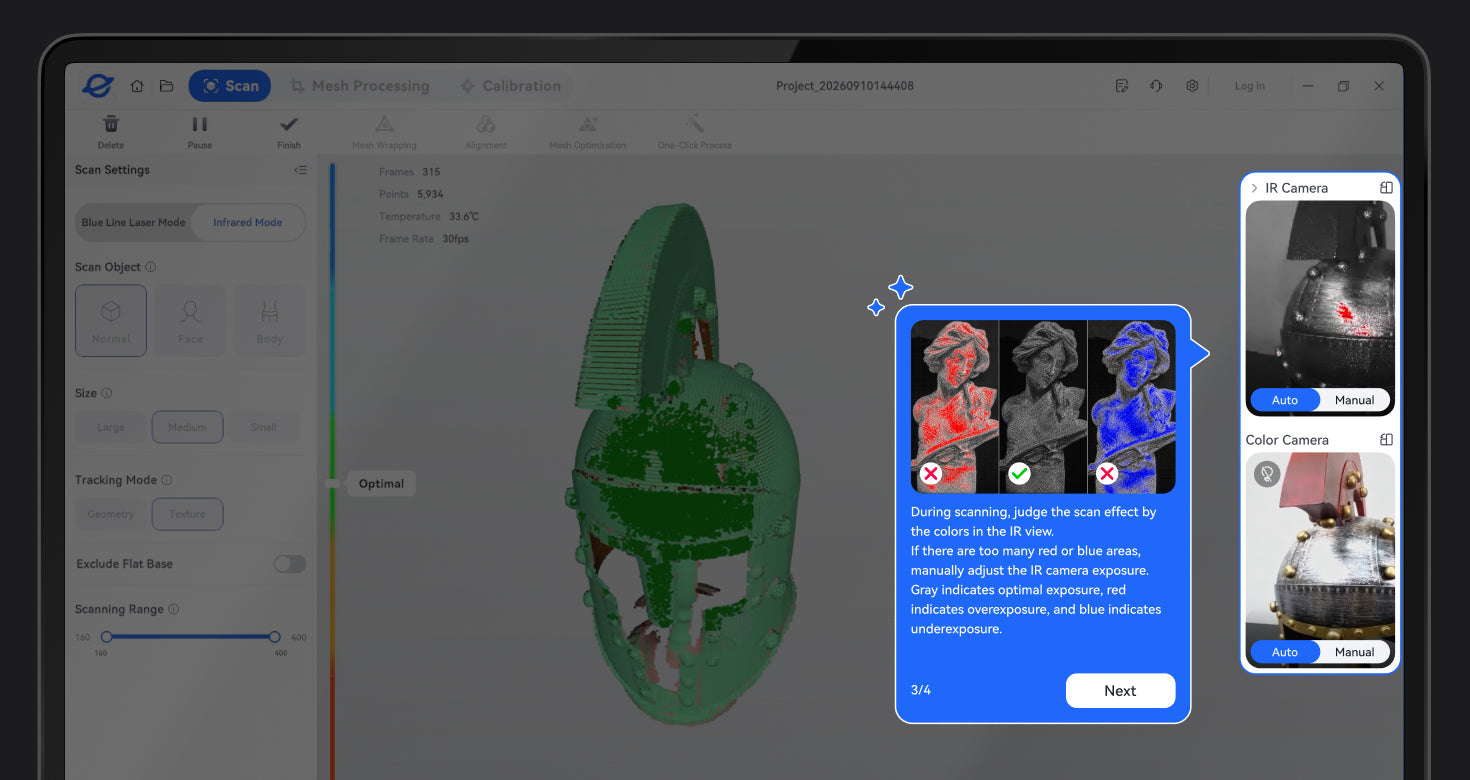

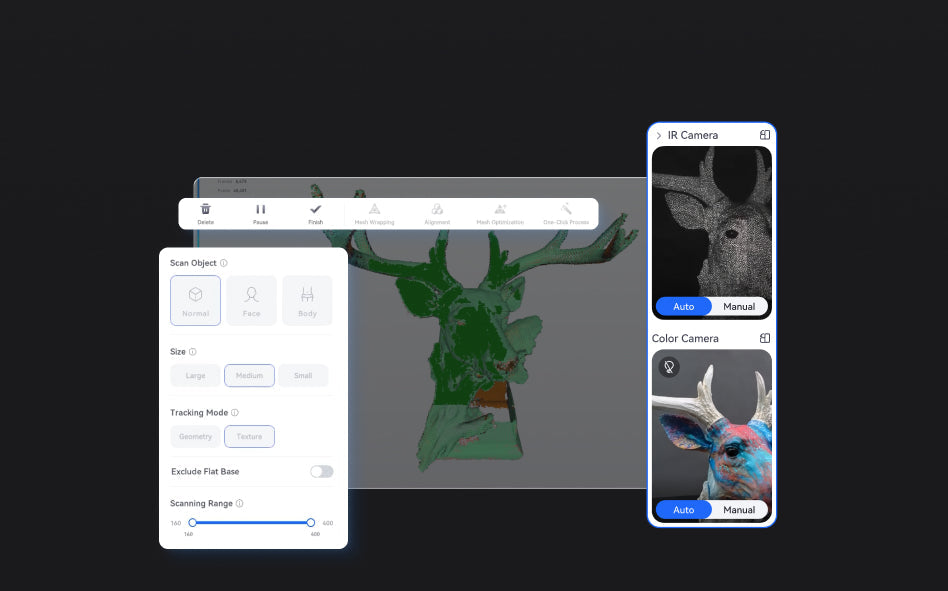

Powerful Software, Simplified Workflows

From first scan to finished model, M1 Ultra brings hardware and software together to simplify complex 3D workflows—with guided operation, intelligent tracking, and automated processing.

What's in the Box

M1 Ultra 3D Scanner

M1 Ultra 3D Scanner

USB 3.0 Data&Power Cable (2m)

USB 3.0 Data&Power Cable (2m)

High-Precision Glass Calibration Board

High-Precision Glass Calibration Board

Reflective Marker (D6mm × 10, D3mm × 10)

Reflective Marker (D6mm × 10, D3mm × 10)

NIR Filter

NIR Filter

Spare Battery

Spare Battery

Tripod

Tripod

Lanyard

Lanyard

Cleaning Cloth

Cleaning Cloth

Specifications

Scanning Parameters

Scanning ModeHigh-Speed ScanningDetailed ScanningDeep-Hole ScanningNIR Markerless Scanning
Light Source34 Blue Crossed Laser Lines7 Blue Parallel Laser LinesSingle Blue Laser LineNIR (Infrared Binocular Structured Light)
AccuracyUp to 0.02 mmUp to 0.02 mmUp to 0.02 mmUp to 0.05 mm
Volumetric Accuracy0.02 mm + 0.06 mm/m × L//0.05 mm + 0.1 mm/m
Scanning Rate2,040,000 points/s840,000 points/s120,000 points/s6,451,200 points/s
Scanning Speed (Wired PC Connection)Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)Up to 30 fps
Scanning Speed (Wireless PC connection)Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)Up to 30 fps
3D Resolution0.05-2 mm0.05-2 mm0.05-2 mm0.1-2 mm
Minimum Scan Volume5 × 5 × 5 mm5 × 5 × 5 mm5 × 5 × 5 mm150 × 150 × 150 mm
Single Scan Range219 × 160 mm at 200 mm
452 × 320 mm at 400 mm
621 × 480 mm at 600 mm144 × 128 mm at 160 mm
219 × 160 mm at 200 mm
452 × 320 mm at 400 mm219 × 160 mm at 200 mm
452 × 320 mm at 400 mm
621 × 480 mm at 600 mm162 × 136 mm at 170 mm
955 × 800 mm at 1000 mm
1121 × 960 mm at 1200 mm
Working Distance200-600 mm160mm-400 mm200-600 mm170-1200 mm
Color MappingSupportedSupportedSupportedSupported
Tracking MethodMarker / Global Marker / Marker-freeMarker / Global Marker / Marker-freeMarker / Global Marker / Marker-freeGeometry / Texture
RGB Fill Light8 White LEDs8 White LEDs8 White LEDs8 White LEDs
Outdoor Scanning≤110,000 lux≤110,000 lux≤100,000 lux≤80,000 lux (with filter)
Marker Recognition Enhancement8 Blue/White LEDs + 4 Infrared LEDs8 Blue/White LEDs + 4 Infrared LEDs8 Blue/White LEDs + 4 Infrared LEDs8 Blue/White LEDs + 4 Infrared LEDs
Laser SafetyClass II (eye-safe)Class I (eye-safe)Class II (eye-safe)Class I (eye-safe)
Calibration BoardHigh-Precision Glass Calibration BoardHigh-Precision Glass Calibration BoardHigh-Precision Glass Calibration BoardHigh-Precision Glass Calibration Board
NIR Filter///Yes

Product Specifications

Processor8-Core CPU (2.0 GHz)
Display3-inch HD Touchscreen
Battery Capacity4,800 mAh (includes a backup battery)
Approx. 1 hr 30 min to charge to 80%
Approx. 2 hr to charge to 100%
InterfaceUSB Type-C / USB 3.1
Input Voltage/Current5 V / 3 A
Wireless ScanningSupported
Wi-FiWi-Fi 6
Operating SystemWindows / macOS

System Requirements

Recommended PC Requirement Windows Windows 10/11 (64-bit)
CPU: Intel Core i7 (13th Gen) or higher
Dedicated GPU: NVIDIA GeForce RTX 4060 or higher (8 GB VRAM)
RAM: ≥32 GB macOS macOS 14 or later
CPU: Apple M4 or later
RAM: ≥32 GB
Minimum PC Requirement Windows Windows 10/11 (64-bit)
CPU: Intel Core i7 (7th Gen)
Dedicated GPU: NVIDIA GPU (6 GB VRAM)
RAM: ≥16 GB macOS macOS 14 or later
CPU: Apple M2
RAM: ≥16 GB

Product Specifications

Device Weight511 g (battery included)
Dimensions191 × 50 × 76 mm
Output FormatSTL, OBJ, PLY, ASC
Operating Temperature−10°C to 40°C
Operating Humidity10–90% RH
CertificationCE, RoHS, REACH, WEEE, PPWR, FDA, FCC, UL, IC, RCM, KC, TELEC

High-Speed Scanning

Light Source 34 Blue Crossed Laser Lines
Accuracy Up to 0.02 mm
Volumetric Accuracy 0.02 mm + 0.06 mm/m × L
Scanning Rate 2,040,000 points/s
Scanning Speed (Wired PC Connection) Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)
Scanning Speed (Wireless PC connection) Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)
3D Resolution 0.05-2 mm
Minimum Scan Volume 5 × 5 × 5 mm
Single Scan Range 219 × 160 mm at 200 mm
452 × 320 mm at 400 mm
621 × 480 mm at 600 mm
Working Distance 200-600 mm
Color Mapping Supported
Tracking Method Marker / Global Marker / Marker-free
RGB Fill Light 8 White LEDs
Outdoor Scanning ≤110,000 lux
Marker Recognition Enhancement 8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety Class II (eye-safe)
Calibration Board High-Precision Glass Calibration Board
NIR Filter /

Detailed Scanning

Light Source 7 Blue Parallel Laser Lines
Accuracy Up to 0.02 mm
Volumetric Accuracy /
Scanning Rate 840,000 points/s
Scanning Speed (Wired PC Connection) Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)
Scanning Speed (Wireless PC connection) Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)
3D Resolution 0.05-2 mm
Minimum Scan Volume 5 × 5 × 5 mm
Single Scan Range 144 × 128 mm at 160 mm
219 × 160 mm at 200 mm
452 × 320 mm at 400 mm
Working Distance 160mm-400 mm
Color Mapping Supported
Tracking Method Marker / Global Marker / Marker-free
RGB Fill Light 8 White LEDs
Outdoor Scanning ≤110,000 lux
Marker Recognition Enhancement 8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety Class I (eye-safe)
Calibration Board High-Precision Glass Calibration Board
NIR Filter /

Deep-Hole Scanning

Light Source Single Blue Laser Line
Accuracy Up to 0.02 mm
Volumetric Accuracy /
Scanning Rate 120,000 points/s
Scanning Speed (Wired PC Connection) Up to 80 fps (1920 × 1200)
Up to 100 fps (1520 × 1200)
Scanning Speed (Wireless PC connection) Up to 50 fps (1920 × 1200)
Up to 60 fps (1520 × 1200)
3D Resolution 0.05-2 mm
Minimum Scan Volume 5 × 5 × 5 mm
Single Scan Range 219 × 160 mm at 200 mm
452 × 320 mm at 400 mm
621 × 480 mm at 600 mm
Working Distance 200-600 mm
Color Mapping Supported
Tracking Method Marker / Global Marker / Marker-free
RGB Fill Light 8 White LEDs
Outdoor Scanning ≤100,000 lux
Marker Recognition Enhancement 8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety Class II (eye-safe)
Calibration Board High-Precision Glass Calibration Board
NIR Filter /

NIR Markerless Scanning

Light Source NIR (Infrared Binocular Structured Light)
Accuracy Up to 0.05 mm
Volumetric Accuracy 0.05 mm + 0.1 mm/m
Scanning Rate 6,451,200 points/s
Scanning Speed (Wired PC Connection) Up to 30 fps
Scanning Speed (Wireless PC connection) Up to 30 fps
3D Resolution 0.1-2 mm
Minimum Scan Volume 150 × 150 × 150 mm
Single Scan Range 162 × 136 mm at 170 mm
955 × 800 mm at 1000 mm
1121 × 960 mm at 1200 mm
Working Distance 170-1200 mm
Color Mapping Supported
Tracking Method Geometry / Texture
RGB Fill Light 8 White LEDs
Outdoor Scanning ≤80,000 lux (with filter)
Marker Recognition Enhancement 8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety Class I (eye-safe)
Calibration Board High-Precision Glass Calibration Board
NIR Filter Yes

Product Specifications

Processor 8-Core CPU (2.0 GHz)
Display 3-inch HD Touchscreen
Battery Capacity 4,800 mAh (includes a backup battery)
Approx. 1 hr 30 min to charge to 80%
Approx. 2 hr to charge to 100%
Interface USB Type-C / USB 3.1
Input Voltage/Current 5 V / 3 A
Wireless Scanning Supported
Wi-Fi Wi-Fi 6
Operating System Windows / macOS

System Requirements

Recommended PC Requirement

Windows Windows 10/11 (64-bit)
CPU: Intel Core i7 (13th Gen) or higher
Dedicated GPU: NVIDIA GeForce RTX 4060 or higher (8 GB VRAM)
RAM: ≥32 GB
macOS macOS 14 or later
CPU: Apple M4 or later
RAM: ≥32 GB

Minimum PC Requirement

Windows Windows 10/11 (64-bit)
CPU: Intel Core i7 (7th Gen)
Dedicated GPU: NVIDIA GPU (6 GB VRAM)
RAM: ≥16 GB
macOS macOS 14 or later
CPU: Apple M2
RAM: ≥16 GB

Product Specifications

Device Weight 511 g (battery included)
Dimensions 191 × 50 × 76 mm
Output Format STL, OBJ, PLY, ASC
Operating Temperature −10°C to 40°C
Operating Humidity 10–90% RH
Certification CE, RoHS, REACH, WEEE, PPWR, FDA, FCC, UL, IC, RCM, KC, TELEC

Note:

[1] Accuracy is evaluated under laboratory conditions using a pair of 100 mm spheres. Actual results may vary depending on the operating environment, including temperature, vibration, and other factors.

The infrared beam and infrared speckle pattern shown are for illustrative purposes only. Infrared light is invisible to the naked eye during scanning.
